Bridge tilt and inclination monitoring
- Bridge with tall piers requiring monitoring for foundation settlement and stability
- Bridge in seismic zone needing tilt assessment during earthquake events
- Bridge over waterway requiring tilt monitoring combined with scour assessment
Request a rapid assessment
Share project details and timelines. Our engineering leads respond within one business day with mobilization options and PE-reviewed scope.
Bridge tilt monitoring measures the inclination and rotational stability of bridge decks, piers, and abutments to ensure structural stability and safety. Bridges across the United States experience tilting from foundation settlement, seismic activity, scour, and uneven loading conditions that can compromise structural integrity. Continuous tilt monitoring provides early warning of developing stability issues and helps bridge owners maintain safe operating conditions for motorists and infrastructure.
Tilt monitoring is particularly important for bridges with long spans, high piers, or foundations susceptible to movement. Small changes in inclination can indicate serious foundation problems or structural damage that requires immediate attention. Modern tilt sensors provide precise measurements that help engineers distinguish between normal thermal movements and potentially dangerous structural shifts.
We provide comprehensive tilt monitoring using precision inclinometers and tilt meters that capture bridge movement in multiple directions. Our nationwide deployment ensures consistent monitoring standards across different bridge types and foundation conditions, with automated alerts for any tilt movement exceeding safe thresholds.
What We Include
- Precision inclinometers for measuring bridge deck tilt
- Pier tilt sensors for foundation stability assessment
- Abutment tilt monitoring for end support conditions
- Multi-axis tilt measurement in X, Y, and Z directions
- Temperature compensation for thermal expansion effects
- Seismic event correlation with tilt measurements
- Real-time tilt visualization and trend analysis
- Automated alerting for tilt exceeding threshold limits
Common Situations We Handle
- Bridge with tall piers requiring monitoring for foundation settlement and stability
- Bridge in seismic zone needing tilt assessment during earthquake events
- Bridge over waterway requiring tilt monitoring combined with scour assessment
Frequently Asked Questions
How does bridge tilt monitoring ensure safety nationwide
Bridge tilt affects safety across the United States from foundation settlement and seismic activity. Our nationwide monitoring provides consistent assessment of bridge stability and rapid detection of movement issues that could affect structural safety.
What causes bridges to tilt and how is it measured
Foundation settlement, scour, seismic activity, and uneven loading cause bridge tilt. We measure using precision inclinometers that detect changes as small as 0.001 degrees in bridge deck and pier inclination.
How do you monitor bridge tilt continuously
Our wireless tilt sensors operate 24/7, transmitting data remotely regardless of weather or access conditions. Continuous monitoring provides early detection of gradual settlement or sudden movement events.
What tilt measurements indicate potential problems
Bridge tilt exceeding 0.1 degrees over short periods or gradual tilting more than 0.05 degrees per month typically indicates foundation or structural issues requiring investigation and potential restrictions.
How does tilt monitoring integrate with other bridge assessments
Tilt data correlates with scour monitoring, strain measurements, and vibration analysis to provide comprehensive structural assessment. Combined data helps engineers understand the root causes of bridge movement.
Example of Our Capabilities
Service Type
Bridge Tilt Monitoring
Scope
Continuous tilt monitoring of bridge deck and piers for stability assessment
Client Situation
Bridge owner needs to monitor tilt stability of structure with tall piers over river crossing
Our Approach

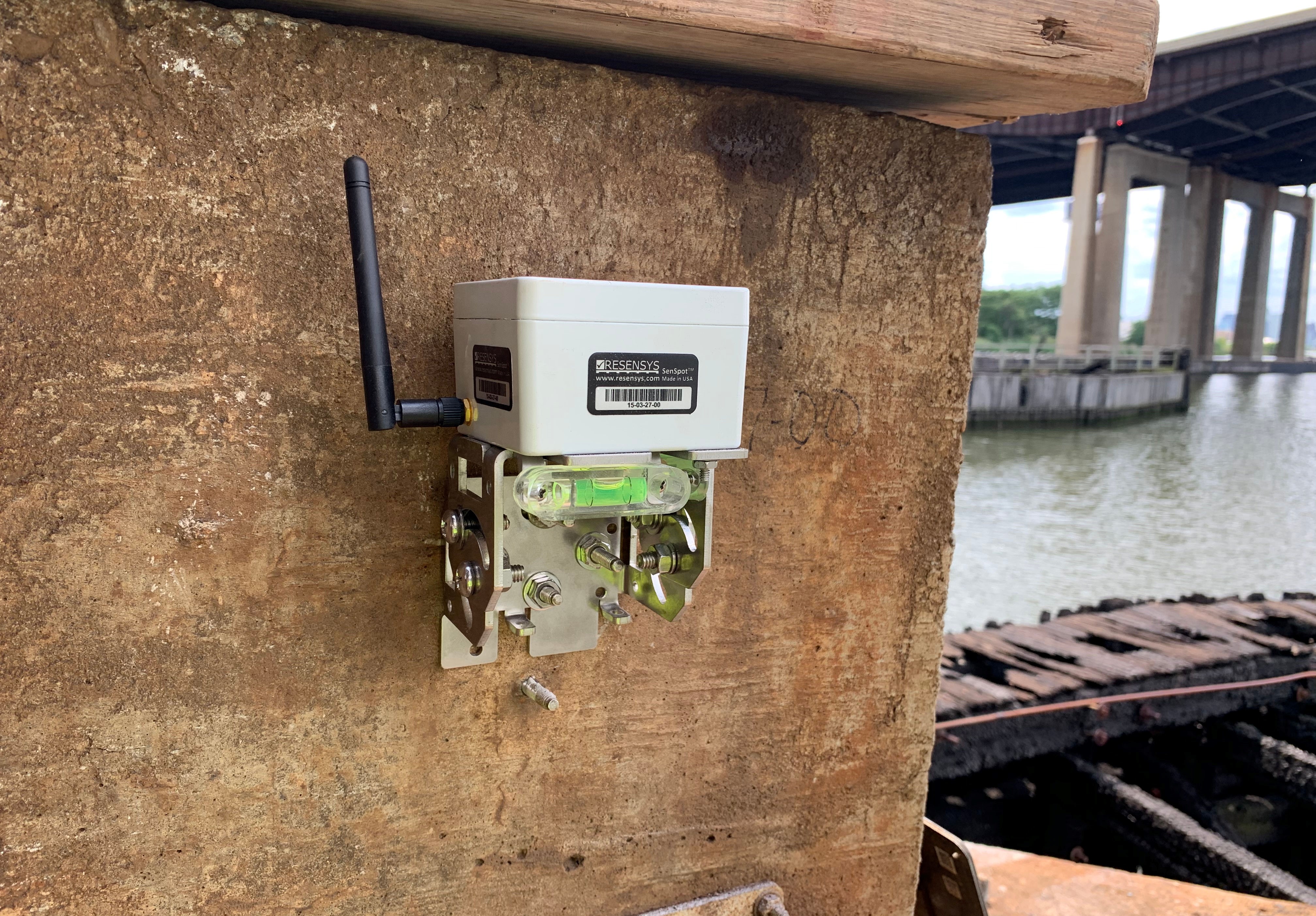

Install precision tilt sensors on bridge deck and pier caps, monitor continuous inclination, and set alerts for movement exceeding stability thresholds
Expected Outcome
Real-time tilt monitoring dashboard showing stability trends, automated alerts for tilt exceeding 0.1 degrees, and monthly stability assessment reports
Contact us to discuss your bridge tilt monitoring needs nationwide. We can share references upon request.
